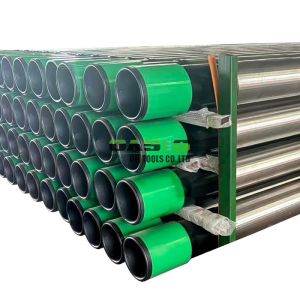

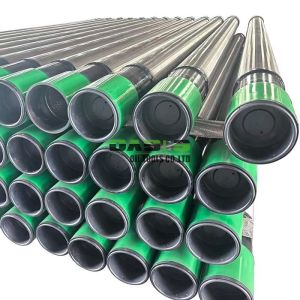

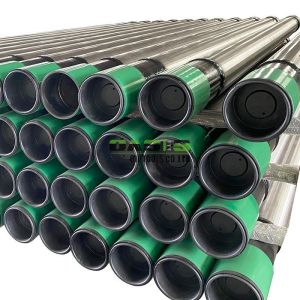

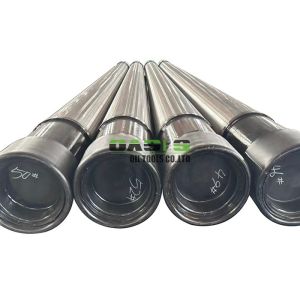

Pipe Based Dual Screen: Advanced Sand Control Solution for High-Performance Wells
The Pipe Based Dual Screen is an engineered well completion solution designed for superior sand control and long-term reliability in demanding downhole environments. It combines a high-strength API casing base pipe with an all-welded wedge wire screen jacket, offering dual-layer filtration and enhanced structural integrity.
Precise Sand Control: Features a V-shaped slot design with filtration accuracy from 0.15mm to 3mm, ensuring effective sand retention without compromising flow efficiency.
Robust Construction: The internal base pipe (K55, J55, N80, or customized grades) maintains over 97% of its original strength, providing exceptional resistance to deformation and high tensile loads.
High Open Flow Area: Screen jacket offers up to 30% open area, while the perforated base pipe provides up to 15%, maximizing fluid entry and optimizing production rates.
Customizable Configuration: Available in diameters from 1 to 10 inches and unit lengths from 1.5 to 5.8 meters. Materials include stainless steel (304, 304L, 316L) or carbon steel, with end connections such as STC, LTC, or BTC.
Cost-Effective Performance: Efficient manufacturing enables high-volume production with consistent quality, reducing total cost of ownership while improving oil and gas recovery.
Base Pipe: API 5CT Casing (Seamless or Spiral)
Screen Jacket: All-Welded Wedge Wire Construction
Slot Size Range: 0.15mm – 3mm (Customizable)
Materials: Stainless Steel 304/304L/316L or Carbon Steel
End Connections: STC, LTC, BTC
| Base Pipe | Screen Jacket | |||||||||
| Nominal Diameter (in) | Outside Diameter (mm) | Weight(lb/ft) Wall Thickness (mm) | Hole Diameter (in) | Hole Density | Hole Area (In2/ft) | OD of Screen Jacket (in) | Open Area(In2/ft) Slot(in) | |||
| 0.008" | 0.012" | 0.015" | 0.020" | |||||||
| 2-3/8 | 60 | 4.6(4.83) | 3/8 | 96 | 10.60 | 2.86 | 12.68 | 17.96 | 21.56 | 26.95 |
| 2-7/8 | 73 | 6.4(5.51) | 3/8 | 108 | 11.93 | 3.38 | 14.99 | 21.23 | 25.48 | 31.85 |
| 3-1/2 | 88.9 | 9.2(6.45) | 1/2 | 108 | 21.21 | 4.06 | 18.00 | 25.50 | 30.61 | 38.26 |
| 4 | 101.6 | 9.5(5.74) | 1/2 | 120 | 23.56 | 4.55 | 20.18 | 28.58 | 34.30 | 42.88 |
| 4-1/2 | 114.3 | 11.6(6.35) | 1/2 | 144 | 28.27 | 5.08 | 15.63 | 22.53 | 27.35 | 34.82 |
| 5 | 127 | 13(6.43) | 1/2 | 156 | 30.63 | 5.62 | 17.29 | 24.92 | 30.26 | 38.52 |
| 5-1/2 | 139.7 | 15.5(6.99) | 1/2 | 168 | 32.99 | 6.08 | 18.71 | 26.96 | 32.74 | 41.67 |
| 6-5/8 | 168.3 | 24(8.94) | 1/2 | 180 | 35.34 | 7.12 | 21.91 | 31.57 | 38.34 | 48.80 |
| 7 | 177.8 | 23(8.05) | 5/8 | 136 | 42.16 | 7.58 | 23.32 | 33.61 | 40.82 | 51.95 |
| 7-5/8 | 194 | 26.4(8.33) | 5/8 | 148 | 45.88 | 8.20 | 25.23 | 36.36 | 44.16 | 56.20 |
| 8-5/8 | 219 | 32(8.94) | 5/8 | 168 | 51.08 | 9.24 | 28.43 | 40.98 | 49.76 | 63.33 |
| 9-5/8 | 244.5 | 36(8.94) | 5/8 | 188 | 58.28 | 10.18 | 31.32 | 45.15 | 54.82 | 69.77 |
| 10-3/4 | 273 | 45.5(10.16) | 5/8 | 209 | 64.79 | 11.36 | 34.95 | 50.38 | 61.18 | 77.86 |
| 13-3/8 | 339.7 | 54.5(9.65) | 5/8 | 260 | 80.60 | 14.04 | 37.80 | 54.93 | 66.87 | |
At Oasis, we ensure every Pipe Based Dual Screen meets the highest standards of quality and reliability. Our comprehensive inspection protocol covers every stage of the manufacturing process:
Raw Material Inspection: Verification of material grades and certifications.
In-Process Inspection: Dimensional checks and weld quality control during fabrication.
Final Product Inspection: Thorough testing for slot size accuracy, structural integrity, and pressure rating.
We support third-party verification to provide our clients with absolute confidence. Customers can opt for independent inspections by renowned agencies such as SGS or Bureau Veritas (BV) at any stage of production.
Ideal for oil and gas wells, water wells, and geothermal applications where reliable sand management and high inflow performance are critical.
For over 15 years, Oasis has been a trusted specialist in filtration technology for the oil, gas, and water well industries. Our dedication to engineering excellence, combined with deep industry expertise, allows us to deliver robust and reliable downhole filtration solutions that perform under the most challenging conditions. When you partner with Oasis, you gain more than a product; you gain a commitment to quality forged over a decade and a half.
